    City Plaza Application Garden Light Pole Automated Production Line for Producing Light Pole

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : LPW-14000
    Certification : CE/ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10 sets / month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    City Plaza Application Garden Light Pole Automated Production Line for Producing Light Pole

    Automate Outdoor Square Application Garden Lighting Pole Productions Line for Producing High Quality Light Pole



    Outdoor square application garden lighting pole shut and welding combination of one machine is suitable for round or octagon pole. It is suitable for pole diameter : 350/450/ 550mm and pole length max 12000mm.
    Light pole shut machine mainly use for combining the steel joint and welding the seam .Light pole was widely used in the world.

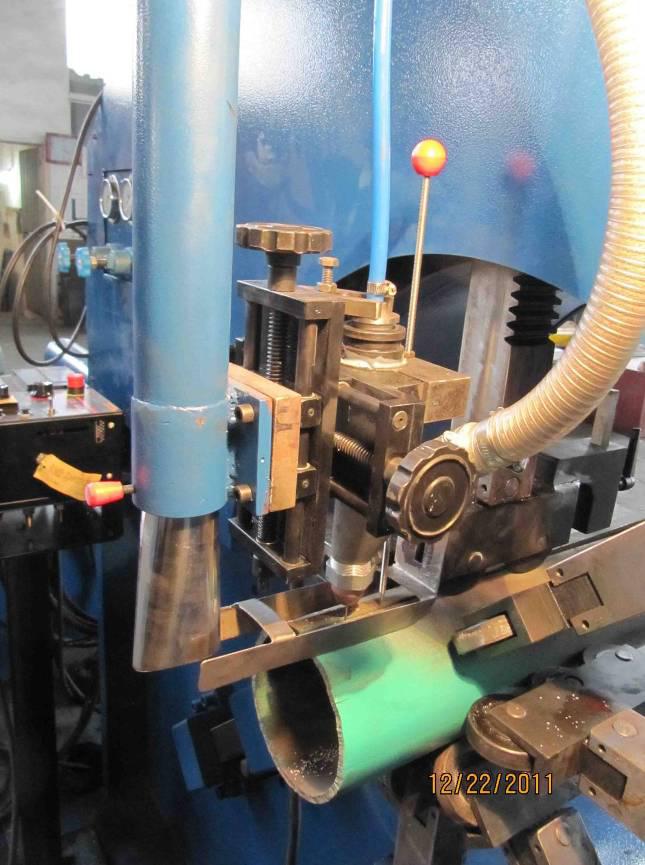

    As a specially in producing the pole clamping and welding machine. We have lots of experience in producing this machine.The pole was widely used in the city and road. It is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end , The hydraulic cylinder through mechanical chain, Worm wheel push the clamping wheel to close the pole and do welding at the same time.

    The machine includes the following items :

    • Long working table with rack for pull doly.
    • Dolly for pulling pole
    • Hydraulic clamping and welding unit (including 3 sets clamping wheels for
    • polygonal and circle pole)
    • Submerged Arc Welding and Gas-shielded welding(CO2) Welding system,
    • including welding wire feeding system.
    • The flux recovering system
    • back support unit
    • hydraulic system


    Technical Parameters

    1

    Workable Diameter

    60-450mm,

    2

    Workable length

    12000 mm

    3

    DOLLY LENGTH

    1500 MM

    4

    Suitable light pole Thickness base
    on mild steel Q235

    Light pole diameter: 60~450mm

    2.8~3mm

    Light pole diameter: 70~450mm

    2.8~4mm

    Light pole diameter: 250~450mm

    2.8~6mm

    5

    Power of Motor for Pump

    4 KW

    6

    Power of Motor for pulling dolly

    4 KW, AC speed changeable type.

    7

    Welding Machine

    630A, (Submerged Arc Welding and
    Gas-shielded welding(CO2) Welding

    8

    Welding wire diameter

    1.2,1.6~2mm welding wire, according the pole
    thickness to do selection

    9

    Working Speed

    1.1~2m/min (Note: different thickness speed
    will be different )

    10

    Gross weight

    7500

    11

    Overall sizes (mm)

    22000x2000x2000 mm (LXWXH)




    Lincoln welding machine (USA BRAND)
    Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc Welding
    process

    Fast motorized return back for dolly
    Note:for the standard machine, the dolly return back can be motorized with working speed, it
    is very slow for return back process. So, normally, the operator will open the dolly clutch and
    push the dolly by manual.
    In order to reduce the manpower, we have option: Fast motorized return back for dolly. The
    operator only push button, the dolly will be back to the welding head.
    See attached detail photos.

    Both Side additional hydraulic cylinder
    It is suitable for small diameter big thickness light pole, or steel plate with high tensile
    strength light pole.
    With this additional option , the diameter from 60~450mm, thickness 2.8~6mm, all pole can be
    suitable. And easy for operation.

    Applications of Light Pole:

    Electricity pole and lamp pole was widely used in the countryside and City ,such as electricity transport pipe , shine lamp pole ; blinker , Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ;Pipe system&Steel works etc.


    Competitive Advantage:

    1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
    2. 20 % overweight design , could making the rotator focus more.
    3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
    4. All the parts using well-known brands in China or other countries . Quality is more reliable .
    5. Using double row bearings.
    6. The base of rotator welded by plates, with high strength, no deformation after long time using.


    Why choose my factory?

    • 360°guarantee makes ordering risk free.
    • 20 years welding machine manufacture experiences.
    • one-stop service of welding.
    • OEM service.
    • Quickly feedback for your problems.
