    Two Long Alloy Steel Plates Automatic Welding Machine Use Piano Press High Electrical Conductivity

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : 3000 / 5000 / 6000 / 8000 / 9000
    Certification : CE/ISO
    Price : USD 40,000----50,000
    Payment Terms : T/T
    Supply Ability : 10 Sets/ month
    Delivery Time : 40-50 Days
    • Product Details
    • Company Profile

    Two Long Alloy Steel Plates Automatic Welding Machine Use Piano Press High Electrical Conductivity

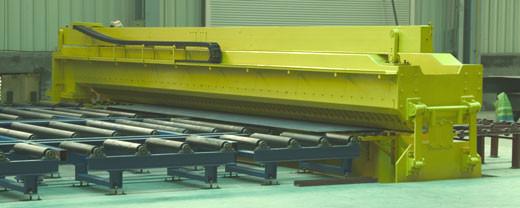

    Two Long Alloy Steel Plates Butt Welded Machine Use Piano Press High Electrical Conductivity

    To finish the flat metal sheet butt joint welding automatically. Welding process is stable,continuous, automatic positioning; welding torch angle and position is adjustable; forming uniform, appearance is good, weld penetration, weld width meets the requirements, and the clamping is convenient.


    Main Technical Parameters

    (1) Welding seam length: 4.5m

    (2) Thickness: 4-8mm

    (3) Motor power: 0.75KW

    (4) Welding torch adjusting volume

    up and down:100mm

    left and right: 100mm

    tilting angle:25°- 60°

    (5) Welding current: 50-500A

    (6) Wire diameter: 1.0mm and Φ1.2mm

    (7) Argon gas consumption (15% CO2 + 85% Argon): 15L/MIN

    (8) Working voltage: 380V,3ph, 50hz



    Product Application:

    Steel Plate butt welding machine is a special machine for combined 2 paltes as a whole.

    Why Choose Us

    1. Machines have always been committed with the service idea of customer-centric, supply installation, adjustment, training and maintenance in pre-sales and after-sales service.

    2. More stringent quality control system.

    3. Delivery time assurance measure: the whole process from signing contract to delivering machine is under strict controlled. The system can ensure us deliver the machine timely.

    Product Advantage:
    1. Convenient, high efficiency
    2. high quality
    3. Reasonable price
    4. good service
