    Steel Plate Cutting , H beam Assemblying ,H Beam Gantry Welding , Flang Plate Straightening , H Beam Production Line

    Ask Lasest Price
    Brand Name : LUOle
    Model Number : 1800
    Certification : CE ISO UL
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Steel Plate Cutting , H beam Assemblying ,H Beam Gantry Welding , Flang Plate Straightening , H Beam Production Line

    Steel Plate Cutting , H beam Assemblying ,H Beam Gantry Welding , Flang Plate Straightening , H Beam Production Line


    H-beam production line production

    This production line is mainly restricted by the gantry type automatic welding machine, because the welding speed is about 300-500 mm/min ,welding speed is basically because the fixed value, If the steel plate thickness about 10-14mm ,The annual production general about 3,000-5,000T (several other piece of equipment can be found in the annual output of about 10,000 tons). Add gantry automatic submerged arc welding machine,you may increase production.


    The common line including these machines:

    1. CNC/GDZ-4000 Multi-head straight stripflame cutting machine
    2. HZJ1500 H-steel automatic assembling-standing machine
    3. LMH-4000 gantry type automatic welding machine
    4. JZJ-40 Flange plate straightening machine
    5. HGP0816-8 Shot blasting & cleaning machine

    Applications:


    Used for the assembling, welding and calibrating of heavy H beam and T bar.


    Specifications:


    Web Plate Height300-1800 mm
    Web Plate Thickness6-40 mm
    Flange Plate Height200-1000 mm
    Flange Plate Thickness6-60 mm
    Work piece Length4000-18000 mm

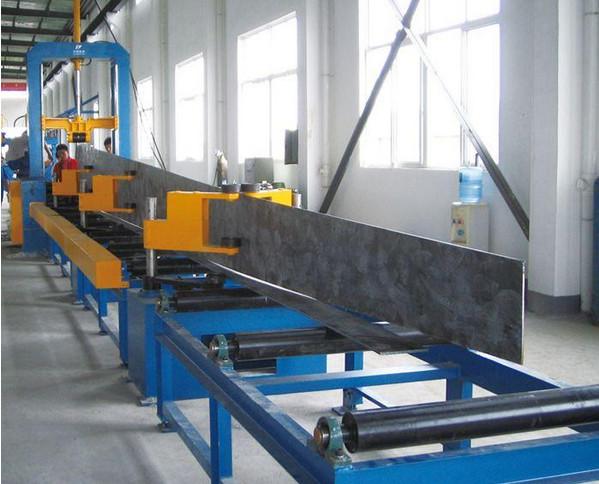

    Machine Photos
