    W Beam Guardrail Roll Forming Machine Highway Crash Barrier

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : 320
    Certification : CE
    Price : Discuss in letter
    Payment Terms : T/T
    Supply Ability : 5 sets/month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    W Beam Guardrail Roll Forming Machine Highway Crash Barrier

    Factory Cheap Price Hot Selling Machine Europe W Beam Guardrail Roll Forming Machine Highway Crash Barrier


    Highway Guardrail Roll Forming Machine


    Aside from the above, this guardrail roll forming machine is able to manufacture double-wave and triple-wave guardrails, and pressing dies can be applied to produce C&U posts. In addition, our machine could be designed to work with hydraulic decoiler and stacker upon customer's request.

    Our expressway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and run out table.


    A). Specifiactions of Highway Guardrail Forming Machine

    1. Material Thickness: 2-4mm
    2. Forming Station: 15 excluding the feeding rollers and leveling rollers
    3. 7 Rollers leveling
    4. Principal Axis Diameter: ¢100mm
    5. Working Speed: 10-12m/min
    6. Main Power: 30KW
    7. Leveling Power: 2.2KW
    8. Hydraulic Power: 15KW
    9. Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
    10. Gross Weight of Machine: about 18 Ton
    11. Voltage: 380V, 3 Phase 50Hz

    B). Main Components


    1. Hydraulic Decoiler ----------------------------------------------- 1 Unit
    2. Leveling and Feeding Guide ---------------------------------- 1 Unit
    3. Punching Device ------------------------------------------------- 1 Unit
    4. Roll Forming Machine ------------------------------------------- 1 Unit
    5. Hydraulic Cutting ------------------------------------------------- 1 Unit
    6. Hydraulic Station ------------------------------------------------- 1 Unit
    7. PLC Contol System ---------------------------------------------- 1 Unit
    8. Runout Table ----------------------------------------------------- 1 Unit
    9. Spare Coupling --------------------------------------------------- 1 Unit

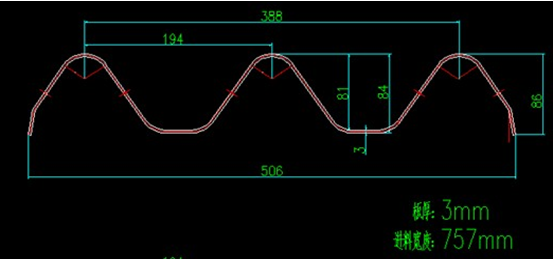

    C). Reference Guardrail Profile Drawing


    W Beam Guardrail Roll Forming Machine Highway Crash Barrier


    D). Application


    Highway guardrail, w beam, w beam guardrail, crash barrier, guardrail post, fish retail...


    E). Competitive Advantages


    High Quality

    Reasonable Price

    Good after Service

    1 Year Warranty

    More Than 10 Years Experience
