Flagstaff Welding Machine Square Flagpole Welder Use SAW / MAG Welding Method Light Pole Longitudinal Seam Welder

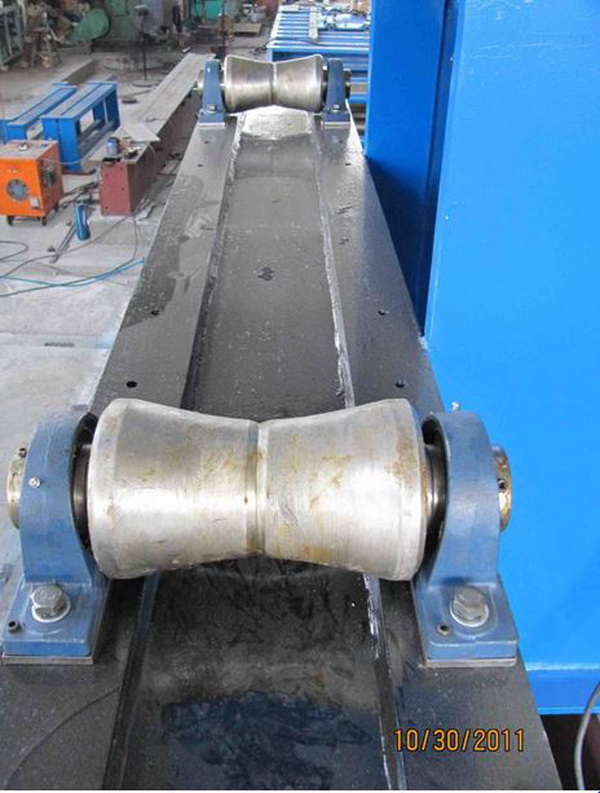

Machine Main Components :

The light pole bending deformation can be existed because of large amount welding heat. We may straighten the pole by through this special press machine.

This machine is consists of rugged and high strength base and hydraulic system.The machine body was welded by thick plate Q345A , so it can bear high compressive stress. It is easy that controlling the whole process .The special produced cylinder piston bar have a circle head which contact to pole.

Technical Parameter

• Model: LPHS450-14000 semi-automatic welding machine
• Workable diameter : 60-450 mm
• Tube wall thickness : 10 mm
• Table length : 3000 mm
• Rated pressure : 100 Tons
• Throat depth : 270 mm
• Stroke of slide : 150 mm
• Max opening height : 610 mm
• Descent : 18 mm/s
• Speed of slide Working : 4.5 mm/s
• Return : 36 mm/s
• Motor power : 11 Kw

Applications:
Electricity pole and lamp pole was widely used in the countryside and City ,such as electricity transport pipe , shine lamp pole ; blinker , Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ;Pipe system&Steel works etc.


Competitive Advantage:

1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
4. All the parts using well-known brands in China or other countries . Quality is more reliable .
5. Using double row bearings.
6. The base of rotator welded by plates, with high strength, no deformation after long time using.

Company introduction

     We are located in Wuxi city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 15 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

      Wuxi Luole Machinery Co., Ltd is a high tech enterprise . We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

    We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, solar photovoltaic forming machine, shelf column roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, cut to length machine, eps/pu sandwich panel production line, slitting line, automatic stacker, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
