    Light Steel Structure H beam Combined and Welding and Straighten 3 in 1 Combination Machinery

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : PHJ
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 50 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Light Steel Structure H beam Combined and Welding and Straighten 3 in 1 Combination Machinery

    China Light Steel Structure H bean Combined and Welding andwith Straighten 3 in 1 Combination Machinery Export to Egypt

    Machine overview :

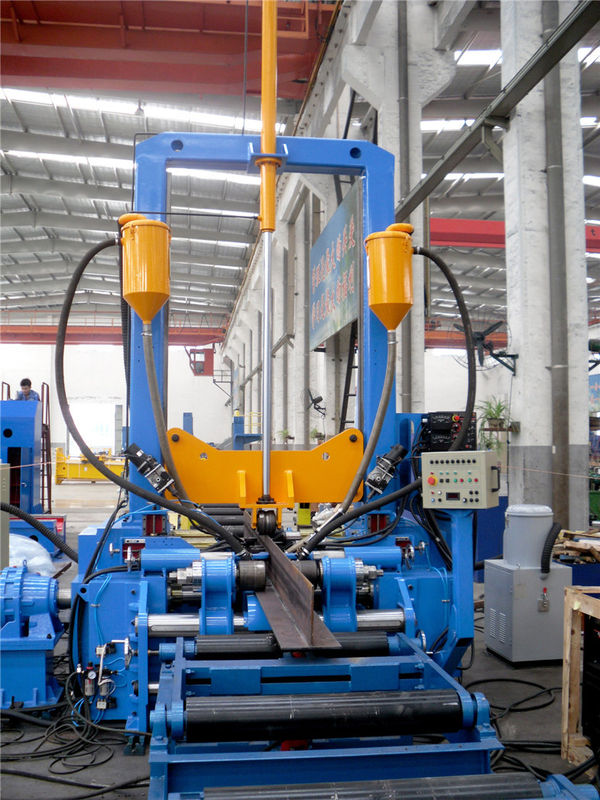

    The 3 in 1 machine is a special equipment for assembly, welding and rectification of H-shaped steel.
    It will be carried out by a group of equipment, gantry welding, straightening machine to complete the three processes to be carried out in a device to significantly increase production efficiency, reduce equipment costs, save equipment installation space, is the efficient production of H-beam and T Steel production equipment.


    It centralize the assembly, welding and straightening functions on one machine which saves space and economize workshop.Reduce workflows: shorten the production time and improve the efficiency. Economize the investment of crane equipment and operator.


    1. Quick Details

    • Web height up to 1800mm, thickness up to 20mm; Suitable for light duty beam;
    • H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening;
    • Save space and economize workshop; shorten the production time and improve the efficiency;
    • Economize the investment of crane equipment and operator;
    • American Lincoln DC-1000,NA-3S single arc twin wire welding power;
    • Japan Mitsubishi PLC controller;

    2. Main Parameters


    ModelPHJ18
    Suitable web height mm200—1800
    Suitable web thickness mm6—32
    Suitable flange width mm200—800
    Suitable flange thickness mm6—20
    Straightening thickness mm6—15
    Fillet height mm≦8
    Work-piece length mm4000—15000
    Feeding speed m/min0.2—2 (VFD)
    Input conveyor m3conveyorss, each 2.6m (one powered)
    Output conveyor m11.5m, including lift conveyor
    Machine power kW18.1
    Power supplyAC380V, 50HZ, 3P or tailor made
    Above are our standard models and parameters, and it can be designed and manufactured on request.

    * We reserve the right to alter specifications without prior notice.


    3. Main features


    The standard models of our H-beam combination workstation for assembly, welding and straightening has the following features:

    • Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
    • Synchronous clamping and centering system for web and flange;
    • Japan Mitsubishi PLC controller;
    • The whole system is using the PLC, and the speed of straightening, assembly and welding is the same;
    • American Lincoln DC-1000,NA-3S single arc twin wire welding power;
    • Flux feeding and recovery machine;
    • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
    • All motion parts have lubrication system;
    • Main electric elements are ABB/Siemens brands;
    • Lifting lug;
    • Standard color:

    4. Comparative advantage

    • ISO9000&CE certified;
    • International warranty;
    • Punctual delivery;
    • Professional and experienced engineer team to ensure the advanced design about structure and electric;
    • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
    • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
    • Optimum materials and outsourcings to ensure the best performance;
    • Commissioning and testing before delivery;
    • Factory inspection is encouraged;
