Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel

    Buy cheap Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel from wholesalers

    Buy cheap Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel from wholesalers
    • Buy cheap Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel from wholesalers
    • Buy cheap Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel from wholesalers

    Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel

    Ask Lasest Price
    Brand Name : LUOLE
    Certification : CE
    Price : Discuss in letter
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel

    Vertical type Crimped Curving Machine Hydraulic Arch Crimping and Bending Machine for Roof Panel


    Description


    Hydraulic Arch crimping machine is and bending machine for roof panel and used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Arch crimping machine Crimping main machine and Control panel, this crimping machine can crimp both ends of roofing sheet.Radius size can be adjusted according to customer requirements. The equipment is mainly for roof bending,make the press adopt hydraulic. Radian size can be adjusted according to customer requirements.


    Specifications


    ItemReference
    Roller materialHigh grade 45# forged steel, surface polished and coated with 0.05mm thickness hard chrome
    Shaft materialhigh grade 45# Steel with Diameter 75mm
    Cutting BladeCr12 mould steel with quenched treatment
    ControlSiemens PLC computer control ( frequency convery)
    Curving radiusR≥1000mm

    Composition of machine


    NO.NAMEUNITQTY
    1Roll forming main machineSet1
    2Arching machineSet1
    3Manual decoilerSet1
    4Control panelSet1
    5Hydraulic stationSet1
    6Manual out tableSet4
    7Electric Seaming MachineSet1
    8Spare toolsBox1

    Application


    This kind of machine is used for curving the corrugated steel sheet which roll formed already by steel roll forming machine. The radius of curving sheet can be adjustable.


    Advantages


    1. High Quality

    2. Reliable

    3. Durable

    4. Reasonable Price

    5. Good after Service

    6. 1 Year Warranty

    7. More Than 10 Years Experience

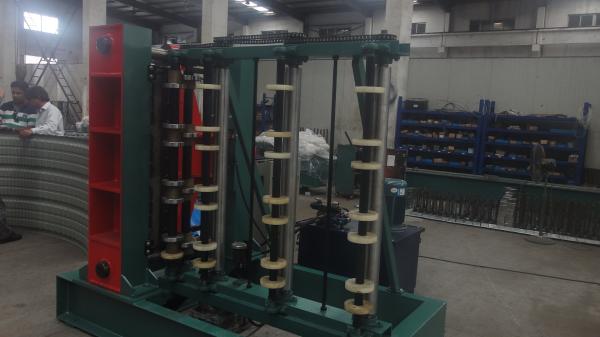

    Pictures

    Quality Hydraulic Vertical Type Crimped Curving Machine Arch Bending Machine For Roof Panel for sale
