    CE H Beam Production Line For Box Columns Beam Use In Soaring Skyscrapers

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : UBZ
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50 sets/month
    Delivery Time : 25 Days
    • Product Details
    • Company Profile

    CE H Beam Production Line For Box Columns Beam Use In Soaring Skyscrapers


    Better Quality of Box Columns Beam Use in the Soaring Skyscrapers Export to Egypt Africa


    1. Main Overview

    Box beam is an important structural part of large bridges and high-rise buildings. Box beam production line is a special production line for producing box beams.
    The box beam production line realizes the flow operation of the box beam from the whole process of blanking, partition making, box assembly, bottom welding, electroslag welding, submerged arc welding and end face processing.
    Reasonable process and reliable equipment performance are in the leading position in the domestic industry. The production line is complete in configuration, high in automation and operability.


    2. Main Parameters


    • Minimum cross section size : 300 × 300 square mm
    • Maximum section size : 1200 × 1200 mm
    • Workpiece length : 4000~15000mm
    • Workpiece thickness : 20~80mm

    3. Working principle

    The line is mainly used for U-beam and box-beam making . Work-piece is put on the conveyor with assistant alignment unit. Motor drives columns moving into its working area. Variable speed can be changed in the PLC automatically .

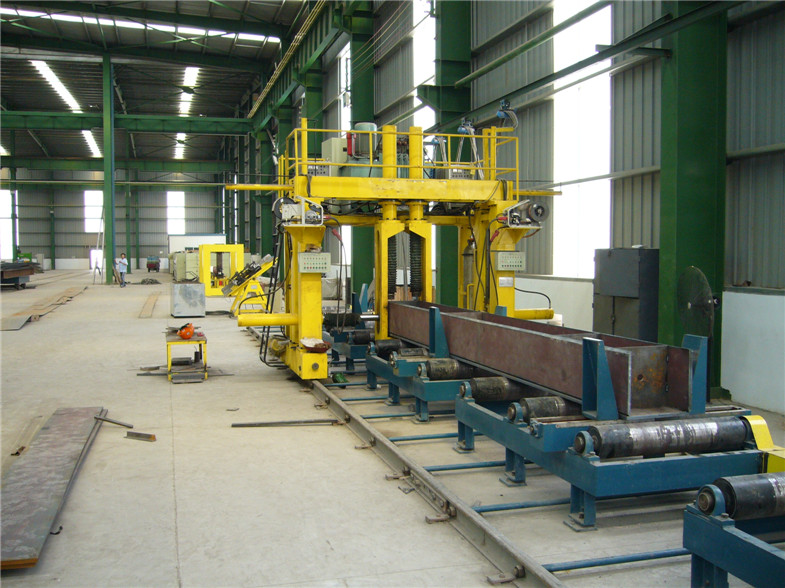

    4. Reference photo


    Gantry Box Beam Welding Production Line Heavy Duty Rail 38KG/m

    5. Comparative advantage

    • ISO9000&CE certified;
    • International warranty;
    • Punctual delivery;
    • Professional and experienced engineer team to ensure the advanced design about structure and electric;
    • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
    • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
    • Optimum materials and outsourcings to ensure the best performance;
    • Commissioning and testing before delivery;
    • Factory inspection is encouraged;
