    CNC Double Drive Plasma Cutting Machine With One Plasma Gun Table Cutting Hypertherm Plasma Power

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : CNC
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    CNC Double Drive Plasma Cutting Machine With One Plasma Gun Table Cutting Hypertherm Plasma Power

    CNC Double Drive Plasma Cutting Machine With One Plasma Gun Table Cutting

    Description

    1.The horizontal guide track adopts a straight line track with high precision and smooth running.The vertical guide track adopts heavy rail.The surface has high precision and wear-ability via grinding post processing.

    2.The machine body is gantry type structure:the crossbeam is treated by whole annealing to eliminate stress

    3.The programming and jacking software may be equipped with FastCAM, InteGNPS etc. or the needs od users.

    4.The travel reducer adopts German high precision planet gear reducer.

    5.The digital control system may be equipped with the international famous brands such as USA Hypertherm,Spanish Fagor,or Beijing Startetc.According to the requirements of user.


    Specifications


    Rail Span (mm)

    3000

    4000

    5000

    6000

    7000

    8000

    Effective Cutting Width (mm)

    2300

    3200

    4200

    5200

    6200

    7100

    Drive Way

    Single Drive

    Double Drive

    Rail Length (mm)

    □ Standard 15000 mm □ Your requirment

    Torch Quantity

    □ 2 CNC and 9 Strip touches □ Your requirment

    Cutting Thickness (mm)

    □ Flame 6-350 mm □ Plasma According to material

    Travel Speed (mm/min)

    Max 12000 mm/min

    Cutting Speed (mm/min)

    Max 6000 mm/min(Set upon cutting material)

    Option:

    If you have your ideas on the Control System and Cutting Source,

    then just let us know.


    Applications


    1. The CNC Oxy and Plasma Cutting Machine mainly used for cutting Mild steel , Stainless , Aluminum , and H-beam production line.

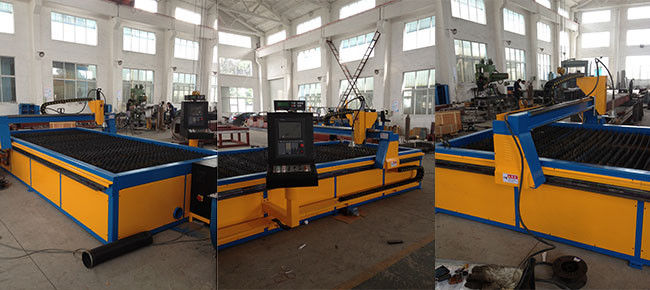

    CNC Oxy Double Drive Plasma Cutting Machine With One Plasma Gun Table Cutting


    Competitive Advantage


    1. CNC system memory capacity, more than 10000 program files;

    2. Supports suspending, forward, backward and speed control;

    3. Memory function of power failure;

    4. USB interface to transfer the U disk files.

    5. FASTCAM Nesting software,programming any complex shapes of plane parts;

    6. Built-in graphic database of CNC system,programming easier, efficient operation;
