    Heavy Duty Electric CNC Hydraulic Press Brake Machine DA41 System Netherlands

    Ask Lasest Price
    Brand Name : luole
    Model Number : WC67K
    Certification : CE/ISO
    Price : Negociate
    Payment Terms : T/T
    Supply Ability : 30 sets/ month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

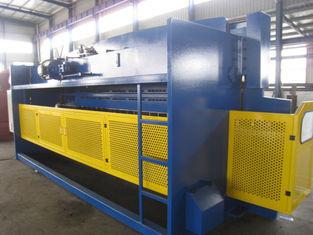

    Heavy Duty Electric CNC Hydraulic Press Brake Machine DA41 System Netherlands

    Heavy Duty Electric CNC Hydraulic Press Brake Machine for Sheet Metal Bending Equipment DA41 System Netherlands


    Products information

    1. Totally European design,streamlined looking
    2. Taking off inner-stress of welded parts by tempering,good stability
    3. Remove rust with sand-blast and coated with anti-rust paint
    4. Frames, assembly surfaces and connection holes are machined after the welding process,up to 60' in a single pass.


    Electrical system and the safety interlock
    1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
    2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
    3. The machine by the European Union CE certification and ISO quality system certification


    Features of hengjian press brake


    1. Press Brake is equipped DA41 CNC control By 2D graphic display is able to guide the operator for precision bending process at one go.
    2. Automatic tonnage and stroke adjustment for bending angles with easy angle input and operation of machine.
    3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.
    4. The sheet metal bending process for near silent working (63dB). Full conformity with EC Machinery Directive for safety and NR-12, NR-13.
    5. Provides CNC control of standard 3 + 1 axis with Y1, Y2 + X + V-axis Crowning.
    6. Hydraulic system is from Bosch,Germany,a full loop electric-hydraulic proportional servo control By Bosch – Rexroth from Germany.


    Main specification:


    TypeNominal Force(mm)Worktable length(mm)

    Poles

    distance

    (mm)

    Throat

    depth

    (mm)

    Slider

    traver (mm)

    Max open

    (mm)

    Power

    (kw)

    Dimention

    L*W*H(mm)

    40t/2200400220018502301003205.52200*1200*1910
    40t/2500400250020302301003205.52500*1200*1910
    50t/2500400250019702301003205.52500*1200*2000
    63t/2500500250019702501003205.52500*1300*2210
    63t/3200630320025002501003205.53200*1300*2210
    80t/2500630250019702501003407.52500*1450*2300
    80t/3200800320025002501003407.53200*1450*2300
    80t/4000800400031002501003407.54000*1450*2400
    100t/2500800250020003201203707.52500*1550*2500
    100t/32001000320026003201203707.53200*1550*2500
    100t/40001000400031003201203707.54000*1550*2500
    125t/32001000320026003201203707.53200*1550*2500
    125t/40001250400031003201203707.54000*1550*2500
    160t/3200160032002510320200450113200*1700*2800
    160t/4000160040003040320200450114000*1700*2800
    160t/5000160050003800320200450115000*1900*3100
    160t/6000160060004600320200450116300*1900*3100
    200t/3200200032002510320200450153200*1900*2800
    200t/4000200040003040320200450154000*1950*2800
    200t/5000200050003800320200450155000*1950*3000
    200t/6000200060005000320200450158000*1950*3300
    250t/320025003200251040025056018.53250*2000*3200
    250t/400025004000304040025056018.54000*2000*3400
    250t/500025005000380040025056018.55000*2000*3400
    250t/600025006000500040025056018.56000*2000*3400
    300t/3200300032002500400250560223200*2000*3450
    300t/4000300040003040400250560224000*2000*3450
    300t/5000300050003800400250560225000*2000*3450
    300t/6000300060005000400250560226000*2000*3450
    400t/4000400040003040400250560304000*2180*3400
    400t/5000400050003800400250560305000*2180*3500
    400t/6000400060005000400250560306000*2180*3800
    500t/5000500050003800400300600455050*3500*3700
    500t/6000500060005000400300600456050*3500*3700
    600t/4000600040003000400320600454050*4500*3700
    600t/6000600060005000400320600456050*4500*3700
    800t/6000800060005000400320600556300*4500*6000

    Metal Hydraulic CNC Press Brake CE Standard For Sheet Metal Bender


    Hydraulic Sheet Metal Bending Press Brake Tooling With High Bending Accuracy



    Installation and warranty


    1. We will send you all the installation docs together with the customs doucs.

    2. Our engineer is also supply the door to door installation service if needed.

    3. Fully equipments with one year warranty with CE certificates.

    4. Long distance Technical supporting, free forever.Any questions, problem on machine, on process help. We can give solution and information to customer by email, skype, video , phone .

    5. In the warranty time, If due to machine quality reason , some parts broken , we will supply the parts , parts is free for customer , shipping cost is free for customer.

    6. After the warranty time, If needs some machine parts, we also supply the parts with basic cost only.
