    High Quality Rolling Shutter Door Slat Metal Panel Roll Forming Machine For Australian standards Shutter Door

    Ask Lasest Price
    Brand Name : LUOLE
    Certification : CE
    Price : Discuss in letter
    Payment Terms : T/T
    Supply Ability : 5
    Delivery Time : 30
    • Product Details
    • Company Profile

    High Quality Rolling Shutter Door Slat Metal Panel Roll Forming Machine For Australian standards Shutter Door

    High Quality 0.5 -2.5mm Rolling Shutter Door Slat Steel Panel Roll Forming Machine For Australian standards Shutter Door


    Main Specifications of Rolling Shutter Door


    • Steel Sheet Thickness: 0.5-1.2mm or 1.5-2.5mm (depend on requirement )
    • Covered Width: 82.3mm ( depend on prfoile )
    • Coil Width: 134mm ( depend on prfoile )
    • Decoiler: Manual Decoiler
    • Capacity of Decoiler: 3 Ton
    • Forming Speed: 5-15m/min
    • Forming Roller Groups: 13 sets main roller
    • Roller Material: Cr15 high grade steel with finish machining treatment, by high frequency quenched HRC58-62
    • Roller Diameter: 120mm
    • Principal Axis: 45# high grade steel with brewage treatment

    Applications of this Series Machine


    Rolling shutter door, shutter door, roller shutter door, shutter door slat...

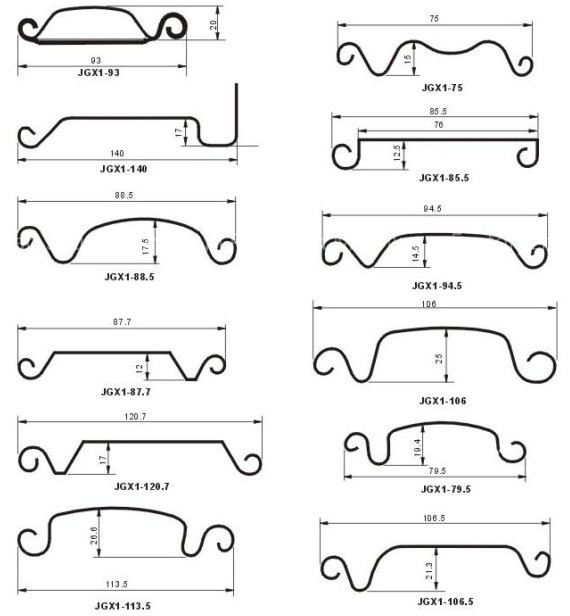

    Roller Shutter Profile Drawing


    0.5 - 1.2mm, 1.5 - 2.5mm Rolling Shutter Door Slat Roll Forming Machine For Shutter Door


    Main Components of Supplying


    • Decoiler ---------------------------------------------- 1 Unit
    • Feeding unit ------------------------------------------ 1 Unit
    • Main roll forming machine --------------------------- 1 Unit

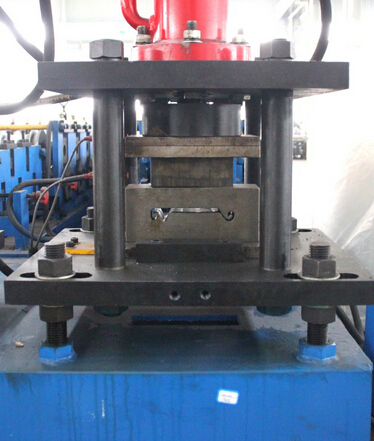

    • Hydraulic cutting device ----------------------------- 1 Unit
    • Hydraulic Pump Station ------------------------------ 1 Unit
    • Full Automated PLC computer control -------------- 1 Unit
    • Output table ------------------------------------------ 1 Unit

    Our Advantage


    • High Quality
    • Reliable
    • Durable
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience
