    Light H Beam Assembly Welding Straightening Welded by USA Lincoln DC-1000 Power Also Named 3 In 1 H beam Productions

    Light H Beam Assembly Welding Straightening Welded by USA Lincoln DC-1000 Power Also Named 3 In 1 H beam Productions
    Why we use "3 in1 H beam line" ?
    In a vast territory country , Such as Russia , Canada , China , US etc .The transport fee is very impoprtant in the project budget. When we want to build a factory, We often hope we may produce H beam at the scene .
    3 in 1 auto H-beam productions line may save working space and increase working efficient , The machine can be moved easily . It is suitable in a country with a vast territory .

    Quick Details of "3 in 1 machine"

    • Web height up to 1500mm, thickness up to 20mm; Suitable for light duty beam;
    • H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening;
    • Save space and economize workshop; shorten the production time and improve the efficiency;
    • Economize the investment of crane equipment and operator;

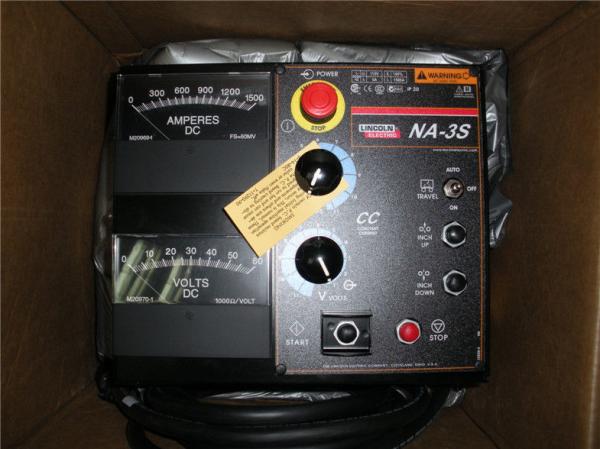

    • American Lincoln DC-1000,NA-3S single arc twin wire welding power;
    • Japan Mitsubishi PLC controller;

    1. Introduction


    H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening. It centralize the assembly, welding and straightening functions on one machine which saves space and economize workshop.Reduce workflows: shorten the production time and improve the efficiency. Economize the investment of crane equipment and operator.


    2. Main Parameters


    ModelPHJ15
    Suitable web height mm200—1500
    Suitable web thickness mm6—32
    Suitable flange width mm200—600
    Suitable flange thickness mm6—20
    Straightening thickness mm6—20
    Fillet height mm≦8
    Work-piece length mm4000—15000
    Feeding speed m/min0.2—2 (VFD)
    Input conveyor m3conveyorss, each 2.6m (one powered)
    Output conveyor m11.5m, including lift conveyor
    Machine power kW18.1
    Power supplyAC380V, 50HZ, 3P or tailor made
    Above are our standard models and parameters, and it can be designed and manufactured on request.

    * We reserve the right to alter specifications without prior notice.


    3. Main features


    The standard models of our H-beam combination workstation for assembly, welding and straightening has the following features:

    • Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
    • Synchronous clamping and centering system for web and flange;
    • Japan Mitsubishi PLC controller;
    • The whole system is using the PLC, and the speed of straightening, assembly and welding is the same;
    • American Lincoln DC-1000,NA-3S single arc twin wire welding power;
    • Flux feeding and recovery machine;
    • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
    • All motion parts have lubrication system;
    • Main electric elements are ABB/Siemens brands;
    • Lifting lug;
    • Standard color:

    4. Reference photo


    380V 50HZ H / I / T Beam Welding Equipment , Electron Beam Weld


    380V 50HZ H / I / T Beam Welding Equipment , Electron Beam Weld


    380V 50HZ H / I / T Beam Welding Equipment , Electron Beam Weld


    5. Comparative advantage

    • ISO9000&CE certified;
    • International warranty;
    • Punctual delivery;
    • Professional and experienced engineer team to ensure the advanced design about structure and electric;
    • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
    • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
    • Optimum materials and outsourcings to ensure the best performance;
    • Commissioning and testing before delivery;
    • Factory inspection is encouraged;
