    Insulation Sandwich Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : 1250
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 5 sets / month
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

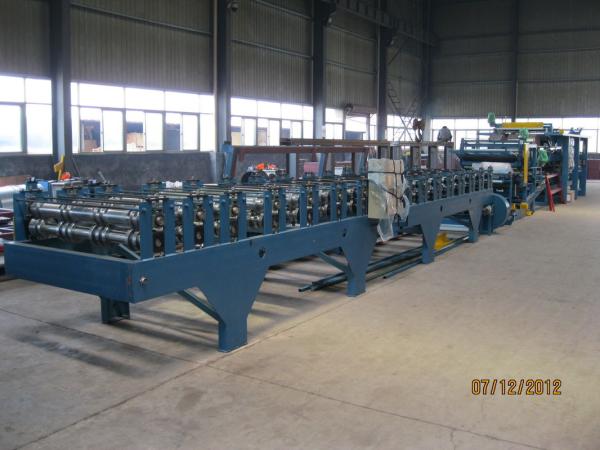

    Insulation Sandwich Panel Roll Forming Machine


    EPS Sandwich Panel Production Line 28KW For Insulation Panel​


    Product of EPS Sandwich Panel Production Machine

    EPS Sandwich Panel Production Line 28KW For Insulation Panel

    ESP sandwich panel production machine could make the polystyrene core sandwich panel. This sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material.


    Technical Data of EPS sandwich panel prodcution machine


    EPS Sandwich Panel Spec
    Panel thicknessMini thickness
    50mm (wall panel)
    Max. thickness200mm(exclude corrugated sandwich panel)
    Steel Sheet Spec
    Thickness0.4-0.7mm color steel sheet
    Width1250mm (we can design according to buyer’s requirement)
    Max. coil weight5 tons
    Inner Dia. of coil508mm
    Whole Line Spec
    Whole line dimensionabout 35000mm × 2500mm × 3000mm
    Total weightAbout 18t
    Working speedAbout 5-7m/min (adjustable)
    The output1500m2-2000m2/8hour
    Control modePLC and converter
    Total powerAbout 28Kw (as per final designing)
    Power required380V/3phase/50Hz or as per customer's requirement.
    Air pressure0.7Mpa (for buyer to prepare)
    Suitable working temperatureAbout 25 degree

    Product application of EPS sandwich panel production machine

    Due to its simple operation, this forming machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings.

    In order to satisfy various customer requirements, we design and manufacture PU sandwich panel lines in different specs, models and configurations.


    Competitive Advantage:


    1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .


    2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.


    3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.


    4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.


    5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.


    6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.


    7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.


    8. Long life: Ensure you our produce machine’s lifetime more than 15 years.


    Certificate: ISO 9001, CE,
