    Min Diameter 610mm Hydraulic Shearing Machine Oil and Gas Transmission

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : LPPR11-30x12000
    Certification : CE / ISO
    Price : Discuss in letters
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Min Diameter 610mm Hydraulic Shearing Machine Oil and Gas Transmission

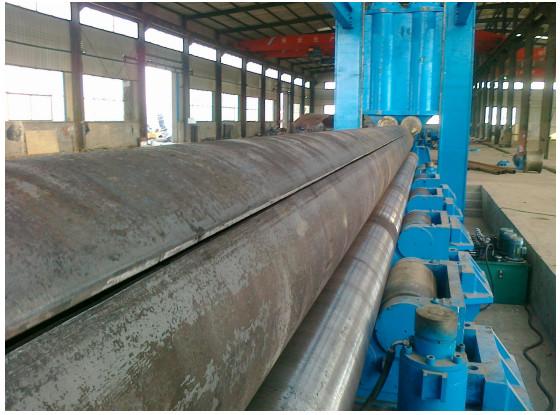

    Small Diameter Long Oil & Gas Pipe Bending Machine in Mertal Transport Industrial Field


    Differences from other normal three roller plate rolling machines

    • The top roller of pipe rolling machine adopts anti-deformation to eliminate the deflection of top roller in the rolling process.
    • Central distance between lower rollers can be adjusted to realize pre bending and rolling.
    • All drives adopt hydraulic motor; three rollers are all driving rollers.
    • Discharging adopts automatic discharging. It doesn’t need to use turnover of overturn frame or other auxiliary equipment to discharge the finished products.

    Main overview

    1. Oil and gas pipelines dedicated bending machine is the use of a number of new technologies:
    2. on a roll by reverse rolling deformation method to eliminate the process of deflection of the roller.
    3. on both ends of the press-roller using multiple sets of cylinder pressure. , fixed cylinder piston rod, cylinder lifting seat and drive the roll movements, effective use of space, increasing material utilization, greatly reducing the overall weight of the equipment.
    4. products discharged from inside the material out of the stent material, the stent without turning inverted reset, enhanced security,
    5. product discharge using automatic cylinder to drive (the company another patent technology), suitable for assembly line.
    Main Technical Parameters:
    LPPR11G oil and gas transmission pipe bending machine technical parameters
    ModelBending thickness(mm)Max plate width(mm)Diameter of
    upper roller
    (mm)
    Main motor power(kw)
    LPPR11G-16*120003~161200048090
    LPPR11G-20*120003~2012000510110
    LPPR11G-30*120004~3012000600150
    LPPR11G-40*120005~4012000800220
