    Mechanical Type H Beam Steel Flange Plate Straightening Machine High Working Speed H beam Straightening Equipment

    Ask Lasest Price
    Brand Name : Luole
    Model Number : JZJ-20
    Certification : CE UL
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30 Sets/month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Mechanical Type H Beam Steel Flange Plate Straightening Machine High Working Speed H beam Straightening Equipment

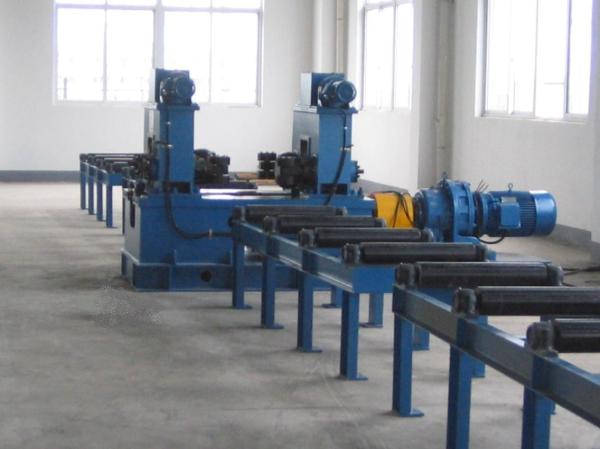

    Mechanical Type H Beam Steel Flange Straightening Machine


    1. Specifications:


    ModelJZJ-20JZJ-40
    Flange width150~600mm200~800mm
    Flange thickness≤20mm≤40mm
    Minimum web height160mm350mm
    Material of plateQ235-AQ235-A
    Straightening speed8.5m/min18m/min
    Power of overall machine6.6kW13.2kW
    Above are our standard model, it can be designed and manufactured according to customer’s request.

    2. Description:


    The H beam flange straightening machine is the special equipment designed for straightening the deformation of flange plate of welded H beam. It has many merits of simple structure, easy operation, high efficiency and working reliably. It is special used for straightening the deformation of welded H-beam, which is divided into Mechanical type and Hydraulic type. Mechanical type is simple in structure and convenient and reliable in operation, suitable for flange thickness not more than 40mm. Straightening rollers and main transmission roller adopt quality alloy steel, which are processed with heat treatment for a long life.


    3. Main Features:


    a. Equipment structure types: Stationary;
    b. The correct form: Mechanical type for flange plate thickness less than 40 mm;
    c. Equipment usage: Simple structure, convenient operation, capacity, correct speed, high degree of
    Automatic;
    d. Correction: High quality alloy wheel material after heat treatment, surface hardness and endurable
    Wear-resisting performance;
    e. Electrical system: The cabinet control.


    4. Advantages of my productions


    1. Our product have high quality and reasonable price.

    2. Good after service and 1 year warranty.

    3. More Than 15 Years Experiences and many times improvements by our engineers.

    4. Our supporting companies : Siemens / Schneider / Bosch Rexroth
