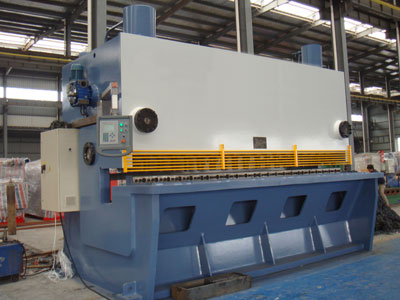

    20 mm Metal Sheets Hydraulic Shearing Machine Metallic Cutting Process 30kw

    Ask Lasest Price
    Brand Name : Luole
    Model Number : QC11K
    Certification : CE UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 35 Days
    • Product Details
    • Company Profile

    20 mm Metal Sheets Hydraulic Shearing Machine Metallic Cutting Process 30kw

    20 mm Metal Sheets Automatic Guillotine Shearing Machine Metallic Cutting Process 30kw


    Machine structure welded by 16Mn steel , vibrating treatment of ageing for removal of internal stress, with good rigidity stability Integrated hydraulic transmission system, with good reliability Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers .

    Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient
    Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet
    Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece Function of shearing in sections, function of lamplight illume device .Optional rear material holding device .All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability .Integrated hydraulic transmission system, with good reliability .Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality .Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers .Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient .Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet .Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece .Function of shearing in sections, function of lamplight illume device .Optional rear material holding device


    Main functions


    ● Shearing Angle locked when processing
    ● Shear Angle hydraulically adjustable
    ● Hydraulic Circuit Return System
    ● Blade Clearance Adjusted by Motor
    ● Front Ball Bearing Working Table
    ● Three-point Roller Guide
    ● Motorized back Gauge with Digital Readout, Manual fine Adjustment
    ● Stress Relieved Frame for long term Accuracy.


    STANDARD ACCESSORIES


    ● Front and side safety guard. Back gauge with light curtain.
    ● American OMG Valve, Japanese Sealing rings, Chinese El0 LCD Display,
    ● Euro-type machine front cover,the first meter of protection can be opened by gas spring
    ● Machine improvements made according to European customer suggestions.


    OPTIONAL ACCESSORIES


    ● Ball screw 600mm (800mm) and linear guide to control back gauge operation.
    ● Italian Mapper Positioner UT071
    ● Ergonomic, Moveable Control Panel


    MAIN SPECIFICATION


    model

    Max

    thickness

    mm

    Max

    width

    mm

    Shearing

    angle


    Number of

    stroke

    Times/min

    Backgauge

    range mm

    Motor

    power

    KW

    Weight

    kgs

    Overall dimension

    cm

    QC11K-4x20004200030′-1°30′20-3850043000260x200x160
    QC11K-4x25004250030′-1°30′18-3650043800313x203x160
    QC11K-4x32004320030′-1°30′16-356005.54500384x218x160
    QC11K-4x40004400030′-1°30′12-326007.56200460x205x190
    QC11K-6x25006250030′-1°30′16-356007.55300313x232x160
    QC11K-6x32006320030′-1°30′14-356007.56500384x232x162
    QC11K-6x40006400030′-1°30′10-306007.57500463x250x170
    QC11K-8x25008250030′-2°14-30600/800116000314x235x162
    QC11K-8x32008320030′-2°12-30600/800116800385x235x162
    QC11K-8x40008400030′-2°10-25600/800118500463x250x170
    QC11K-8x50008500030′-2°10-258001515000580x215x210
    QC11K-8x60008600030′-2°8-208001519800665x285x170
    QC11K-12x250012250030′-2°12-25800158700324x305x210
    QC11K-12x320012320030′-2°12-25800159800395x305x210
    QC11K-12x400012400030′-2°8-208001513400475x321x220
    QC11K-12x600012600030′-2°6-2080018.529000675x343x230
    QC11K-16x250016250030′-2°12-20800/1000159000341x323x223
    QC11K-16x320016320030′-2°1-20800/10001511000412x323x223
    QC11K-20x250020250030′-3°10-20800/10002211000342x333x270
    QC11K-20x320020320030′-3°8-18800/10003018000418x333x270
    QC11K-20x400020400030′-3°7-15800/10003021000498x348x283
