Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels

    Buy cheap Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels from wholesalers

    Buy cheap Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels from wholesalers
    • Buy cheap Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels from wholesalers
    • Buy cheap Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels from wholesalers

    Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : HGK / WR
    Certification : CE / ISO
    Price : Discuss in letter
    Payment Terms : T/T
    Supply Ability : 3 sets/month
    Delivery Time : 20-25 DFays
    • Product Details
    • Company Profile

    Digital Redout Automatic Welding Machine Pipe Welding Turning Rolls Motorized For Pressure Vessels

    ISO Standard Automatic Pipe Welding Turning Rolls Motorized For Pressure Vessels



    Automatic rotating and motorized traveling pipe welding rotator ​Description

    1. Automatic rotating and motorized traveling pipe welding rotator is be researched, designed and manufactured absorbing domestic and international advanced equipment.

    2. Automatic rotating and motorized traveling pipe welding rotator mainly used for big pipe, containers, boilers, pressure vessels, oil tank, wind tower and other cylinders assembly welding, blasting and painting.

    3. Automatic rotating and motorized traveling pipe welding rotator can assort all kinds of auto welding or manual welding, improving welding quality, reducing the labor and improving productivity.



    Automatic rotating and motorized traveling pipe welding rotator ​Application

    1. Pressure vessels

    2. Pipe manufacturing industries

    3. Wind power fabrication

    4. Chemical & fuel storage tank fabrication

    5. Any heavy cylindrical joB



    Automatic rotating and motorized traveling pipe welding rotator Main Technical Parameter


    Main technical parameter
    ModelHGK-02HGK-05HGK-10HGK-20HGK-40HGK-60HGK-80HGK100HGK150

    Rated loading

    (T)

    251020406080100150

    Vessel diameter

    range (mm)

    150-2000250-2300320-2800500-3500600-4200750-4500800-5000

    1000

    -5500

    1000

    -6000

    PU roller

    dia. and width (mm)

    200*80250*100300*120350*150400*180450*180*2450*200*2500*240*2500*260*2

    Metal roller

    dia. and width (mm)

    /////////

    Linear speed

    (mm/min)

    100-1000mm/min
    Speed controlVariable Frenquency Drive speed control

    Motor power

    (kW)

    2*0.182*0.372*0.552*1.12*1.52*2.22*32*32*4

    Traveling speed

    - Optional (mm/min)

    3000mm/min

    Traveling motor

    - Optional (kW)

    2*0.182*0.372*0.552*0.752*1.12*1.52*2.22*32*3

    Exhibition

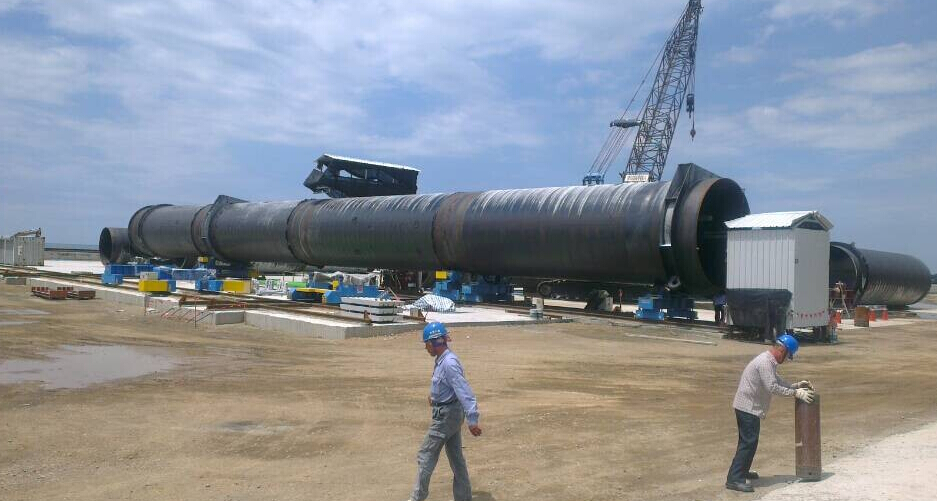

    Customer working site:


    Customized Heavy Duty Welding Turning Roll For 2000T Weldment With CE ISO
