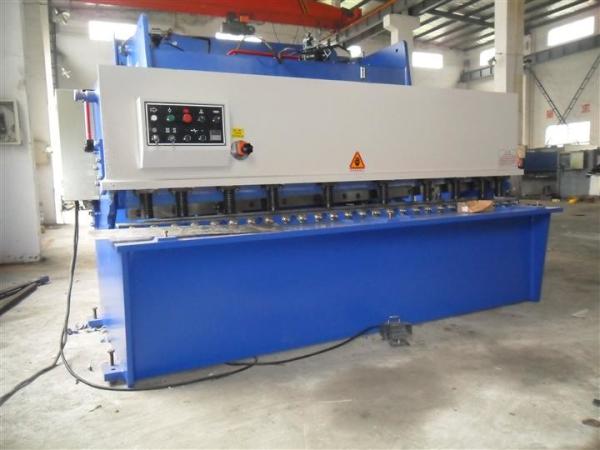

QC12K Swing Beam Metal Shearing Machine Plate Shear CE Standard 24V Safe Voltage

Main Features:

1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.

2. Simplified blade gap adjustments to allow for a wide range of material types

3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.

4.Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

5. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

6. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

7. The machine by the European Union c e certification and I S O quality system certification

8. Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.

9. Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.

10. All seals in cylinder is imported,the most famous brand,good quality and high performance

11. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly

12. The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.

13. The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.

14. Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades

15. System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.

16. Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.

17. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

18. Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.

19. System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.

20. Optional:Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge.

Main specifications

Our Advantages:

1. Entire welded structure has been annealed/normalized.
2. Back gauge equipped with high performance linear guide, ball screw and servo motor attached
3. to the base of swing beam shear's structure.
4. Back-gauge movement, cutting times, and cutting stroke are all controlled by the Swiss CYBELEC 61G system, which is produced special for shearing machines.
5. Our main supporting company : Siemens / Schneider / Bosch Rexroth

Attention Please

1. Please contact us if you need any help for your customs clearance.

2. Please let us know if any part broken during the delivery, we will send a new one freely at once.

3. Please send us the working pictures after installation. We will give you some suggestion if needed.

4. You also can get the door to door price , then you do not need to pay the tax any more.

Please send us your inquiry now !

Company introduction

     We are located in Wuxi city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 15 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

      Wuxi Luole Machinery Co., Ltd is a high tech enterprise . We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

    We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, solar photovoltaic forming machine, shelf column roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, cut to length machine, eps/pu sandwich panel production line, slitting line, automatic stacker, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
