PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet

    Buy cheap PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet from wholesalers

    Buy cheap PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet from wholesalers
    • Buy cheap PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet from wholesalers

    PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet

    Ask Lasest Price
    Brand Name : LUOLE
    Certification : CE
    Price : Discuss in letter
    Payment Terms : T/T
    • Product Details
    • Company Profile

    PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet

    PLC Control Glazed Tile Roll Forming Machine 18 Stations Color Steel Sheet ​



    Technical parameter

    Item

    Parameter


    Material

    Type

    Color steel sheett

    Thickness

    0.4-0.7

    Yield strength

    230-300

    Forming speed

    5-8 m/min

    Roller material

    45#steel with chrome coated

    Roller driven type

    Chain transmission

    Controller

    PLC

    Operation

    Touch screen+button

    Hydraulic system pressure

    13 KW

    Hydraulic station motor power

    7.5 KW

    Main motor power

    4 KW

    Total power

    11.5 KW

    Total weight

    About 1 ton


    Main Components


    Roof Forming Main Machine

    1 Unit

    Manual Decoiler

    1 Unit

    Control Panel

    1 Unit

    Hydraulic Station

    1 Unit

    Manual out Table

    2 Units


    Technics flow

    Decoiling----guiding and feeding ----roll forming----pressing----cut to length----run out table

    General Description

    This series high speed tile forming machine is a new-generation type with high speed and high-efficient ,including decoiler system,sheet guiding system,roll forming system,pressing system,cut system,auto-stacker system,hydraulic system,controlling system etc.
    We can customize machine according to your requirements.


    Application

    This roof panel used as the roofing of factory, warehouse. It is easy to realize the reliable and safety installation.
    Good toughness: with super toughness, Tere is no necessary to do any treatment amontg the nail hole, it is sealing and can prevent leaking water.
    Long life: life ≥ 25 years, is an alternative to steel sheet
    Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.
    Noise performance: noise performance is good, away from the noise.
    The appearance of the shape: color and length can be arbitrarily chosen.

    Character of main structure

    a. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
    b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
    c. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
    d. It is very easy to install the equipment and suitable for producing in the factory.
    e. The machine has features of low noise and high efficiency.

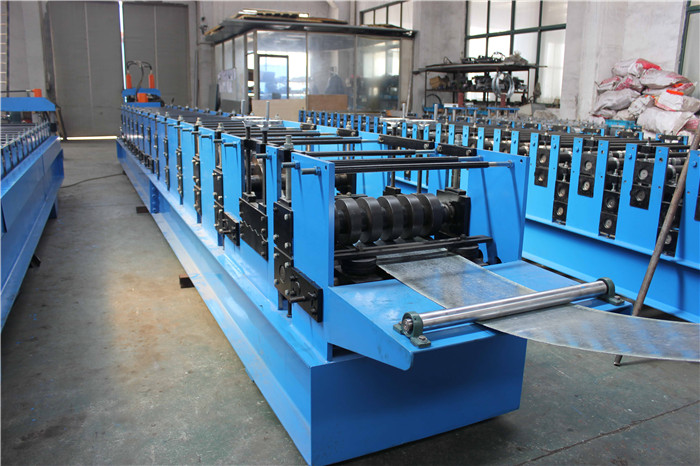

    PLC Control Speed 5m/min Glazed Tile Roll Forming Machine 18 StationsPLC Control Speed 5m/min Glazed Tile Roll Forming Machine 18 Stations
