    Hydraulic Press Plate Bevelling Machine Groove Surface 12000mm Length

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : XBJ-6 9 12 14
    Certification : CE/ISO
    Price : USD 15,000----100,000
    Payment Terms : T/T
    Supply Ability : 10 Sets/ month
    Delivery Time : 40-50 Days
    • Product Details
    • Company Profile

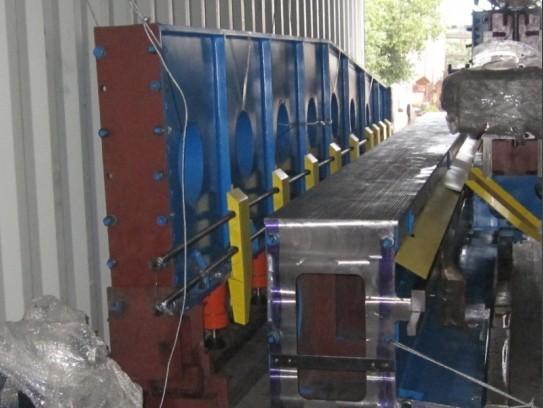

    Hydraulic Press Plate Bevelling Machine Groove Surface 12000mm Length

    Hydraulic Press Plate Bevelling Machine Groove Surface 12000mm Length


    If we want to machining the X type groove , we may use 2 milling heads ,one working up and another working from down . It is have very high efficient.

    In the important welding seam , the groove must processing by milling head . The milling head is very important for milling the groove. We import the shining head from Taiwan origin place ,The brand is 'e-long'. It has a stable processing performance . Low noise and milling stable. We sold many this model machine to Egypt and Russia.

    Compared with the traditional edge milling machines, this machine series is mountable in their tracks, more rational in structure by heat-treatment of the bench, more reliable and stable in the milling & turning head’s running. The feed and feed-back systems are fully independent respectively. The feed-back is quick and is highly efficient. The angle of the milling tool’s tray is convenient in adjustment, and the custom-built tool rest and the normal tool rest can be inter-converted. They are the updated products of the traditional edge milling machine.

    According to customer's need, we can customize various different specifications such as double milling head, double side milling , great milling head ,auto-feeding ,auto-blocking.


    Main Technical Parameters


    Type

    XBJ-6

    XBJ-9

    XBJ-12

    The angle of milling

    0-45°

    The thickness of being processed steel plate

    6-50

    The max depth of milling bevel edge at one time

    12

    The traveling speed of crosswise milling

    0.05-0.5

    The rotational speed of milling and whittling spindle

    75-420

    The working pressure the of hydraulic pressure system

    ≤3.5

    ≤3.5

    ≤3.5

    The number of the cylinders

    8

    11

    15

    The height between the platform and the ground

    900

    The power of driving motor

    1.5

    The power of milling motor

    5.5

    5.5

    5.5

    The power of oil pump motor

    5.5

    5.5

    5.5

    The nominal size of the machine(a×b×c)

    7724×2600×2050

    10724×2600×2200

    13724×2600×23


    Product Application:
    Milling machine is a special machine, which can machining the steel plate groove..
    Product Advantage:
    1. Convenient, high efficiency
    2. high quality
    3. Reasonable price
    4. good service
