    Motorized 0.8MM - 1.2MM Roll Forming Machine Professional With 28 Stations

    Ask Lasest Price
    Brand Name : LuoLe
    Certification : CE
    Price : discuss in letter
    Payment Terms : TT
    • Product Details
    • Company Profile

    Motorized 0.8MM - 1.2MM Roll Forming Machine Professional With 28 Stations

    Motorized 0.8MM - 1.2MM Roll Forming Machine Professional With 28 Stations​



    Main Specifications of Floor Decking Sheet Roll Forming Machine


    • Material Spec: Galvanized steel sheet

    • Thickness of Coil Sheet: 0.8 --1.2 mm

    • Main Motor Power of Floor decking roll forming machine: 18.5kw

    • Forming Speed: 10--12m/min

    • Hydraulic Station Power: 4kw

    • Quantity of Stands: About 28 groups

    • Hydraulic Pressure: 10~12Mpa

    • Controlling System: PLC

    • Index Error of Length: 10m±1.5mm

    • Total Weight: About 1800kg

    • Voltage: 380V 3 phase 50Hz or at buyers requirement


    Main Components


    • Decoiler ----------------------------------------------- 1 Unit

    • Feeding ----------------------------------------------- 1 Unit

    • Main roll forming machine ----------------------------- 1 Unit

    • Hydraulic cutting device ------------------------------- 1 Unit

    • Hydraulic Station ------------------------------------- 1 Unit

    • PLC computer control -------------------------------- 1 Unit

    • Output table ----------------------------------------- 1 Unit

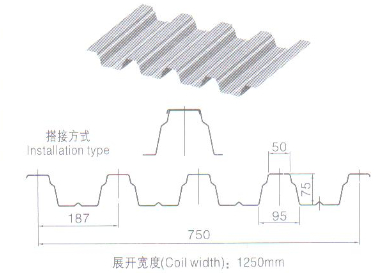

    Common drawings:


    Motorized Professional 0.8MM - 1.2MM Roll Forming Machine With 28 stations


    Motorized Professional 0.8MM - 1.2MM Roll Forming Machine With 28 stations
