    Omega Profile Truss Roll Former Machine for Metal Stud And Track

    Ask Lasest Price
    Brand Name : Luole
    Certification : CE
    Price : Discuss in letter
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Omega Profile Truss Roll Former Machine for Metal Stud And Track

    Omega Profile Truss Roll Former Machine for Metal Stud And Track


    Quick details:

    1. Condition: New, Tile Type: Steel, Certification: ISO9001 and CE
    2. Feeding Material: color steel coils, Payment terms: T/T L/C
    3. Condition: New, Type: Tile Forming Machine

    Description

    1. Omega profile batten roof truss roll forming machine is one of the most common machine to produce cold roll formed roof truss profiles. It is the most popular machine in light building construction area and this equipment i will introduce is especially popular in Indonesia market.
    2. Such omega profile batten roof truss roll forming machine is our skilled equipment which have great performance. Our roll forming machine for C channel or U channel and roof truss from thickness 0.4mm-1.0mm.
    3. The whole line of Omega profile batten roof truss roll forming machine include the automatic decoiler or manual decoiler for 1.5ton coils , roll forming machine include the guide& feeding device, cutting blade drived by hydraulic power and auto stacker or manual stacker for finished products.
    4.This line can be automatic running by inputting the length and batches in the PLC system.
    5. The strong H beam base is treated to avoid the vibration when working.
    6. All the rollers are hardness quenched to guarantee the life
    7. The human computer interface operate system will save human source to operate the production line.

    The Equipment list is as follows:

    CompenentQtyRemark
    Decoiler1Loading the coil material
    Feeding guide device1Feeding and guide the material sheet
    Main roll forming machine1Roll form the metal sheet
    Hydraulic Cutting blade1Cutting the formed products
    Hydraulic Station1Provide power for cutting
    PLC control cabinet1Electrical control system
    Output table1Load the finished products


    The working flow layout:

    Decoiler–feeding guide–roll forming machine–Hydraulic cutting–Output table

    Specification

    1)Main motor power:4kw
    (2)Hydraulic station power:4kw
    (3)Sprocket:P-25.4
    (4)Forming station:10
    (5)Material of roll:45#steel hard chrome plate
    (6)Length of production line:4.5m
    (7)Installation dimension about(L*W*H):4.5*1*1.4m
    (8)Diameter of principal axis:50mm

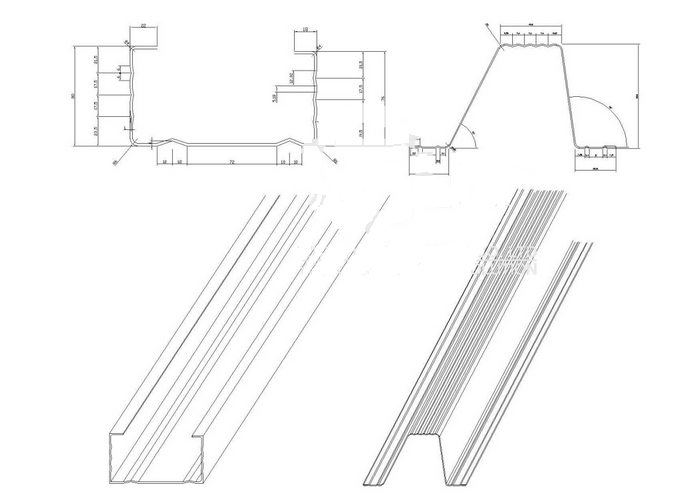

    Sample profiles:



    Application

    Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

    Advantages

    1)Good and Stable quality
    2) Strong bearing capacity
    3)Non-deforming, fadeless
    4)packing in carton

    5)easily to install
