    Economic Continuous Automatic Sandwich Making Machine PLC 1.2 inch Chain

    Ask Lasest Price
    Brand Name : LUOLE
    Certification : CE
    Price : discuss in letter
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Economic Continuous Automatic Sandwich Making Machine PLC 1.2 inch Chain

    Economic Continuous Automatic Sandwich Making Machine PLC 1.2 inch Chain


    Description


    This line can be set according to customers" need, length is positioning controlled by computer.
    It can be exactly positioned, and shown timed on the touch screen, as well as automatically count and revise.

    This line suitable to process outer side of sandwich panel,

    materials sheet are colored steel sheet, aluminum steel sheet, stainless steel
    sheet and so on. The inner side materials are flame retardant EPS, rock wool and so on.


    Parameters


    Material Width

    1000mm

    Effective width

    720mm

    Thickness

    0.3-0.8mm

    Size

    45000mm*2800mm*3000mm

    Weight

    about 3tons

    Diameter of shaft

    Φ80,45#steel

    Material of roller

    45#steel,Chrome

    Main motor power

    4kw

    Hydraulic station

    4kw

    Number of rollers

    13stand rollers

    Control system

    PLC computer controller

    Speed

    6-10m/min

    Chain

    1.2 inch

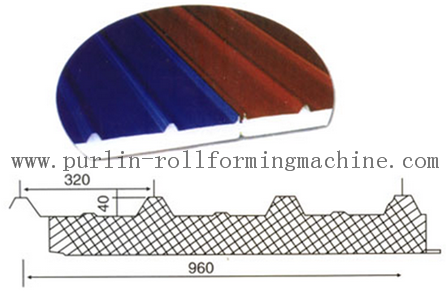

    Drawing of the Sandwich panel machine



    Compound part parameters


    1. Voltage: 380V/50-60HZ2. Power: 32KW
    3. Working speed: 0-4m/min
    4. Width: 1000mm 1200mm
    5. Thickness: 50-250mm
    6. Row material: EPS (polystyrene)
    7.Machine dimension: 45000mm * 2800mm * 3000mm
    8.Total machine line: about 15 tons


    Service for the EPS sandwich panel production line


    We provide the technical support for whole life.

    Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.

    When need the technician to go abroad, we will arrange the technician.

    But the buyer should take all the cost, including Visa, Roundtrip


    Advantages


    1. We provide our customers with 1 year warranty.
    2. Any parts damaged because of quality problem will be changed for free within the first year.
    3. Technical support is provided for free at the whole life of the machine.
