    4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI

    Ask Lasest Price
    Brand Name : LUOLE
    Certification : CE
    Price : Discuss in letter
    Payment Terms : T/T
    Supply Ability : 5 sets
    Delivery Time : 35 Days
    • Product Details
    • Company Profile

    4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI

    4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI




    Description

    Expressway Guard Rail Forming Machine is an expert machine specialized in guard rail panel. The products of the machine are widely used in the highway and the relate fields.
    Our Roll Forming Machines for the manufacture of Expressway Guardrail, Galvanized W beam guardrails, Corrugated steel beam, fencing and road barrier, B Guardrail, Three beam steel guardrail, Highway Barrier Beams, Standard W-beam Guardrail, Steel Beam Guardrail, This guard rail forming machine mainly consists of conic, guide equipment. leveling system, edge cutting, punching, roll forming system, roll forming cutting system, stacking equipment, stacking move equipment, hydraulic station, electric control cabinet.


    Specifications

    Line structure

    Portal-type frame style: 45# steel

    Forming Roller Stations:

    18 Stations

    Forming Roller shaft:

    ¢90mm, 40Cr, quenching, treating

    Forming rollers

    GCr15, quenching, hardness HRC56-62º

    Forming Speed:

    12 meters / min (suggestion speed: 7-8m/min)

    Main motor:

    45kw

    Hydraulic station motor

    15kw

    feed material thickness:

    (2-5) mm× L

    Suitable raw material:

    Q235A galvanized steel sheet

    Driving mode:

    Gearing box & cardan shaft

    Cutting mode:

    automatic punching cutting style

    Blade material:

    Cr12, quenching and treating

    Control mode

    PLC


    Expressway guardrail profile

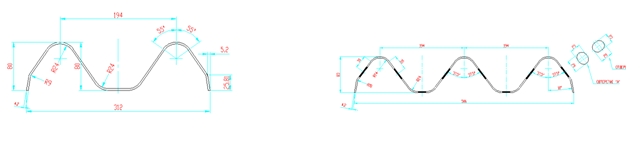

    Roll formed guardrail profiles produced by roll form machine are included W beam guardrail and three beam steel guardrail. The following profiles showed as following is for the two waves and three waves and post profile drawing and popular in the world market,


    Drawing




    Advantages

    1.This production line can be automatic running by input the products length and batches to the PLC control system .
    2.Very strong base frame treated to avoid any vibration.
    3.Precise- All the rollers are CNC lathe processed and polished on the surface to guarantee the accuracy.
